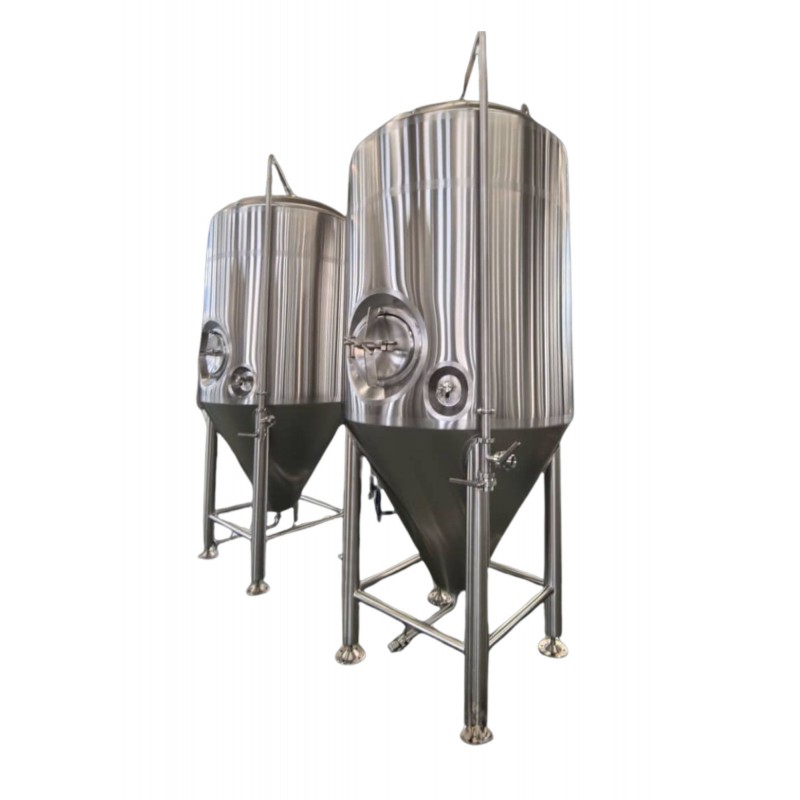

Fermentation tank 20 HL MyKegs

Model 7000001

Condition New

WORKING VOLUME: 20 HL,

TOTAL VOLUME: 25 HL

CYLINDER HEIGHT TO DIAMETER RATIO: 1.2:1

PRESSURE SPECIFICATIONS: ISOBARIC, MAX. ALLOWED PRESSURE 2.75 BAR

TEST PRESSURE: 4 BAR

GEOMETRICAL SHAPE:

CYLINDROCONICAL TANK WITH TORISPHERICAL TOP
CONE ANGLE: 60°

Delivery about 5-7 days

More details

Technical Documentation

Download PDF Documentation

The file will open in a new tab

More info

SUPPORT: 4 ADJUSTABLE LEGS

MANHOLE: SIDE-MOUNTED

COOLING JACKET:

DIMPLE COOLING JACKET ON THE CYLINDRICAL PART
DIMPLE COOLING JACKET ON THE CONICAL PART

THERMAL INSULATION: POLYURETHANE FOAM, 80 MM, WITH AISI 304 CLADDING (2MM)

PRODUCT OUTLET: TOTAL DISCHARGE FROM THE CONE, 250 MM ABOVE GROUND LEVEL, EQUIPPED WITH A BUTTERFLY VALVE

SAMPLING VALVE: HYGIENIC DESIGN

CIP SYSTEM: DYNAMIC SPRAY BALL ON THE TOP OF THE TANK WITH AN ADDITIONAL CO2 EXHAUST PORT; BUTTERFLY VALVE AT THE OUTLET

MECHANICAL PRESSURE REGULATING VALVE WITH PRESSURE GAUGE

COMBINED SAFETY VALVES (OVERPRESSURE AND VACUUM)

TEMPERATURE PORTS:

ONE PORT FOR TEMPERATURE SENSOR
ONE TEMPERATURE SENSOR

FITTINGS: ACCORDING TO DIN 11851 STANDARD

LADDER SUPPORT

EU PED CERTIFICATION
